Skewed-Layout Agricultural PEB — Senegal, West Africa

Senegal, West Africa

4,318 sqmScale
168 MTTonnage
Delivered Aug 2025Duration
Project Image

Project Overview

A pre-engineered building in Senegal, West Africa, for the storage and processing of agricultural products — spanning 4,317.92 sqm and delivered with 168 MT of structural steel.

The project was distinguished by a skewed building layout that demanded special technical consideration. Both sine and cosine components of wind loads were applied to accurately examine the behaviour of the columns along the skewed side wall.

Engineering Highlights

  • 4,317.92 sqm building for agricultural storage and processing
  • 168 MT of structural steel
  • Skewed building layout requiring special technical consideration
  • Sine and cosine wind-load components applied along the skewed side wall
  • Full structural planning, design and detailing
  • International delivery — Senegal, West Africa

Project Gallery

3D detailing model — skewed-layout PEB
3D detailing model — skewed-layout PEB
3D structural model — skewed building geometry
3D structural model — skewed building geometry
3D structural model — full framing layout
3D structural model — full framing layout
Roof sheeting plan — skewed roof geometry
Roof sheeting plan — skewed roof geometry
Wind-load analysis — sine and cosine components on the skewed wall
Wind-load analysis — sine and cosine components on the skewed wall
Wind load case application across the structure
Wind load case application across the structure

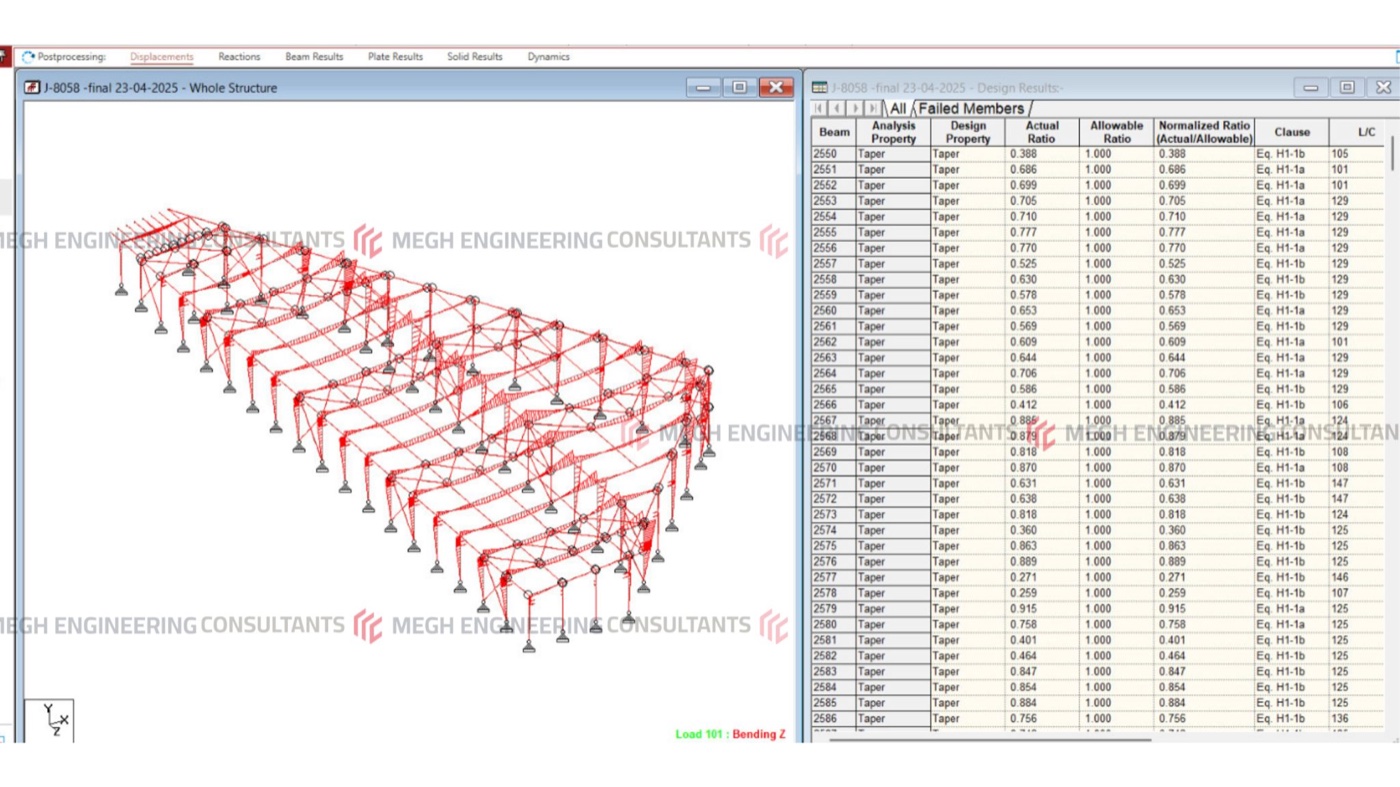

Member design utilization — all members within allowable ratios
Member design utilization — all members within allowable ratios
